| Introduction

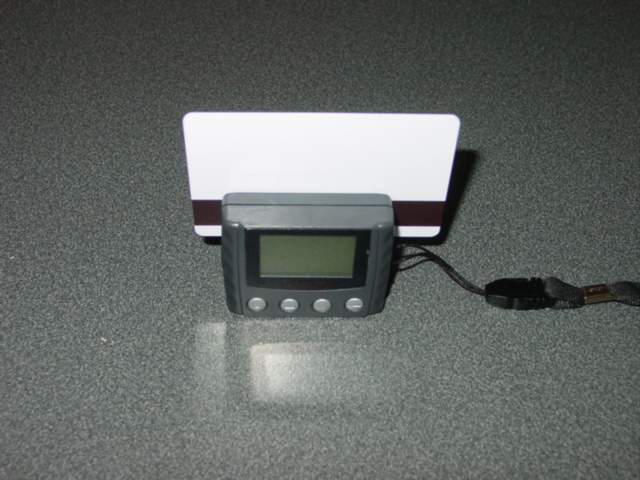

Mini600 is a
mini portable battery-powered magnetic stripe reader with LCD
and time stamp for Data verification and collection
applications. Mini600 is designed for card swiping data
collection anytime and anywhere without computer.
Mini600 is built in 2 in 1
interfaces for USB and RS232. Data is read from the card and keep
into the memory, then downloaded to the computer.
|
|
|
Retail Price: $799
|
Magnetic Stripe Read / Write Software
|
|
|
|
Features
- LCD display (102 X 68 dots)
- Beep Off/On by software
- RS232/USB 2 in
1
- LED status
- 512K bytes memory
for storing 3000 data
- Time
stamp shows
date and time with every transaction
- Magnetic stripe reader can read all 3 tracks
- Power on by 1.5 v Battery
- Auto power off for power saving
- Low
battery indicator / Memory full indicator
- Password
Protection
defends user
- Programmable for many more
functions
- Transfer data to MSR206
directly
- Software easy to use
- Bi - Directional
- L2.25x W1.80 x H0.75 inch
- 1.9 oz
|
| |
Applications
- Any
movable data collection (Trade shows, Racing
events)
- Employee's Time / Attendance data collection
- Exhibition visitors' data collection
- Conference attendance data collection
- Card
verification (age verification)
- Point of sales (payment collection)
- Law
enforcement (DMV card)
- Attendance (Student ID, Membership
card)
|
| |
Specifications
| ISO Standard |
| Track 1 |
210 bpi, 79 Alphanumeric
Characters |
| Track 2 |
75 bpi, 40 Numeric characters
|
| Track 3 |
210 bpi, 107 Numeric
characters |
| Electrical |
| Memory size |
512K stores up to 3000
records |
| Time stamp |
| Date: YY/MM/DD
( 2005/04/11 =>
April 11, 2005 ) |
| Time: HH:MM:SS
(19:08:35 =>
7:08:35pm) |
| Week:
Sun.=>1, Mon.=>2,
Tues.=>3 Wed.=>4,
Thurs.=>5,
Fri.=>6, Sat.=>7 |
| Example: 2005/04/11 19:08:35 2 => April
11, 2005, 7:08:35pm, Monday
| |
| Interface |
USB or RS232 |
|
LCD Display |
FSTN 102 X 67
Dots Matrix
|
| Speed |
Card speed through the unit may vary from 3
~50 ips |
| Battery Power |
Single-cell Size AAA 1.5V DC
Battery
|
| Environment |
| Working Temp |
0~55 Deg. C |
| Storage Temp |
-10~55 Deg C |
| Humidity |
10~90% Relative |
| Physical |
| Dimensions |
L 2.25x W
1.80 x H 0.75 inch
( L 58 X W 46 X H 20 mm
) |
| Net Weight |
1.9
oz
| |
©
