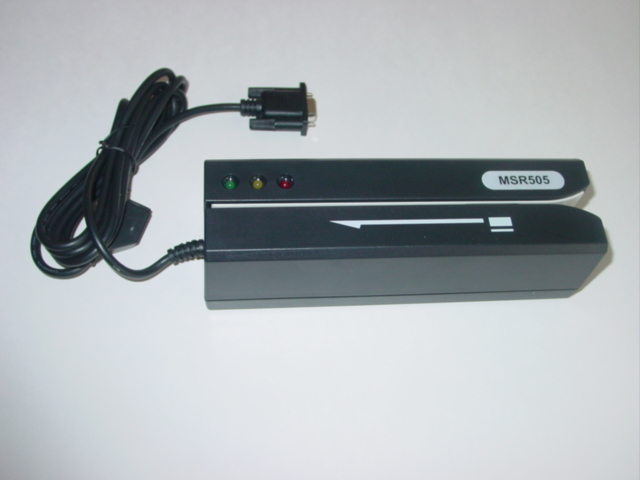

MSR 505 Reader/Writer
Retail:
$799
|
Magnetic Swipe Card
Reader/Writer MSR505 is designed to offer a card
reading/writing solution for ISO formats. It reads and
writes up to 3 tracks of data, decoding/encoding and verifying
up to 3 tracks of data simultaneously. MSR505 Reader/Writer
provides a standard RS-232/USB interface to communicate with
host system or other terminal computers. |
|
|
|
Magnetic Stripe Read / Write
Software |
Features
- Reading/Writing
magnetic stripe card complied with ISO formats
- Read/Write High &
Low Coercive
(300~4000Oe)
- High/Low
Coercivity encoding circuitry selectable on screen
- Program software
for Windows Me/XP/2000/NT
- Programming
software for various read/write performance
- Manual Swipe to
read and/or write card with RS-232 /USB output
- Writing and
verifying data on single, dual, or triple track in one
swipe
- +24VDC, 2.5A Max
external power adapter attached
- Dimensions of
210(L) x 60(W) x 62(H) mm
|
|
Specification |
| Electrical |
| Power
requirements |
+24VDC +/-
5% |
| Consumption |
Typical 350mA
Max. 600mA plus for each writing
track |
| Power
supply |
External
switching power 24V/2.5A |
|
Communication |
Standard RS232
or RS232 with USB-to-RS232 adapter
cable |
| Ripple |
50mVp-p or
less |
| Dielectric
strength |
500 VDC for 1
minute |
| Performance |
| Read
card |
Track1 |
Track2 |
Track3 |
| Bit per
density |
210
bpi |
75/210bpi |
210
bpi |
| Coercive
force |
Read/write
300-4000 oe Mag.card |
| Card
thickness |
0.76-1.2mm |
| Read
speed |
STD
card |
Jitter
+/-15% |
Amp.
60% |
| |
5-55ips |
5-50ips |
5-50ips |
| Write
speed |
5-30ips |
| Write
jitter |
Interval <
+/- 10%, Sub-interval < +/- 12% |
| Error
rate |
Read <
0.5% |
| |
Write <
0.8% |
| Head
life |
Min. 1000K
swipes for both read/write
head |
| Mechanical |
| Body
material |
ABS
94V-0 |
| Weight |
Approx.
1.5kg |
|
Dimension |
210.1L x 60W x
62H mm |
| Swipe |
Manual, single
direction |
| Environments |
|
Operation |
-10 to
55oC, 10 to 85% humidity |
|
Storage |
-30 to
70oC, 10 to 90% humidity |
| Safety
Approval |
| Rating |
FCC Class B, CE
ClassB, UL,
cUL | | |
| |
